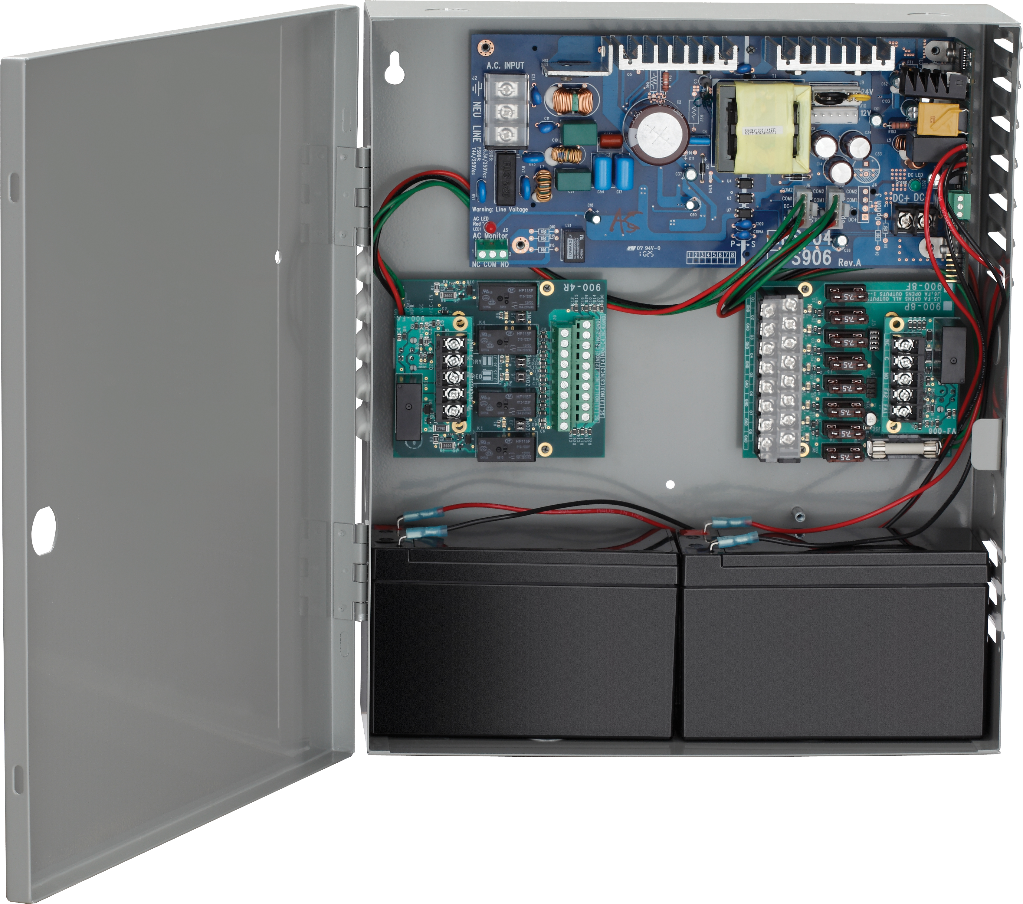

PS904 is the 4-amp base power supply in the PS900 series. Field-selectable 12 or 24 VDC output, universal 120-240 VAC primary input. Configurable with battery backup, fire alarm relay, and distribution boards (2RS, 4R, 4RL, 8F) for multi-door access control systems.
Configurations Available
Use the Configuration dropdown above to select your specific model. All variants share the same enclosure and core power circuit; differences are in the distribution board, fire alarm relay, and battery backup options.
Specifications
- Filtered and regulated DC power, Class 2 compliant
- Field-selectable 12 or 24 VDC output (jumper)
- Universal 120-240 VAC fused primary input
- Single polarized option board connector
