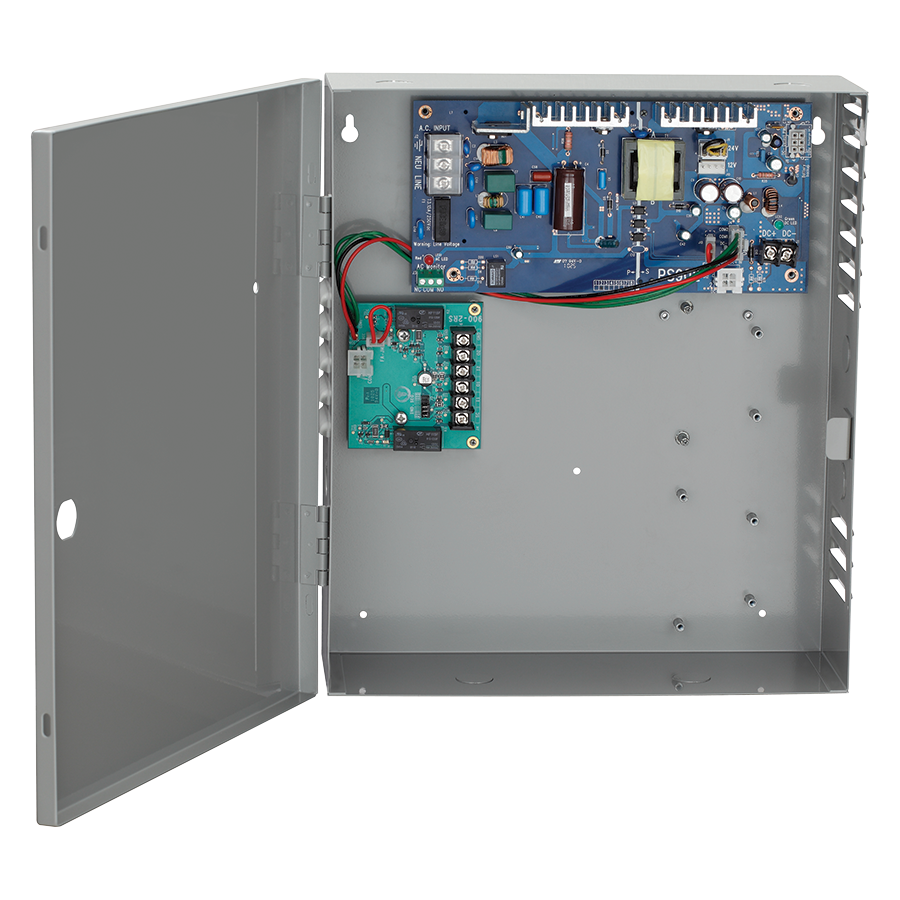

PS902 is the base power supply in the PS900 series, delivering 2 amps of low-voltage Class 2 filtered and regulated DC power at field-selectable 12 or 24 VDC. Choose your configuration: bare base, with battery backup (BBK), with fire alarm relay (FA), or with one of four distribution board options (2RS, 4R, 4RL, 8F).
Configurations Available
Use the Configuration dropdown above to select your specific model. All variants share the same enclosure and core power circuit; differences are in the distribution board, fire alarm relay, and battery backup options.
Specifications
- Filtered and regulated DC power, Class 2 compliant
- Field-selectable 12 or 24 VDC output (jumper)
- Universal 120-240 VAC fused primary input
- Single polarized option board connector
