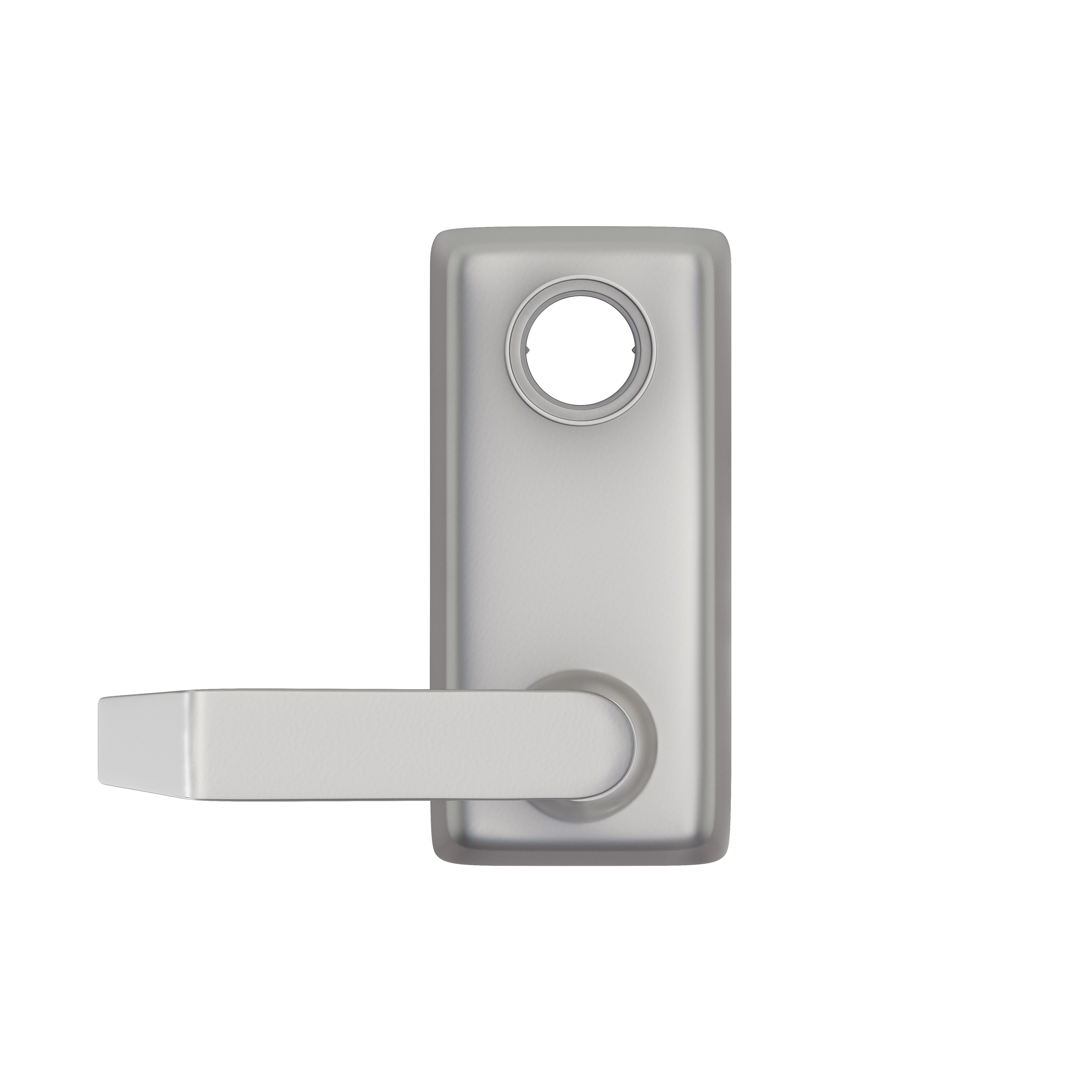

Von Duprin 230L-BE Classroom Passage Lever Trim

The 22 Series wide stile devices provide coverage for most standard applications. It is available in several rim and surface vertical configurations combined with electronic options, is ANSI A156.3, Grade 1 certified and has UL fire ratings. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

Features

• Passage Exit Trim
• 230L-06 Lever
• 2-5/8" Projection
• 3" x 6-3/8" Escutcheon Dimension
• ANSI A156.3-2008, Grade 1
• 3 Year Warranty

Specifications

• Function: Passage
• ANSI/BHMA Grade: Grade 1
• Finish: SP313
• Finish Description: Sprayed Dark Bronze
• Door Handing: Left Hand Reverse
• Door Thickness Range: 1-3/4" - 2-1/4"
• Base Material: Varies
• Warranty: 3 Year Warranty
• Certifications: ANSI A156.3-2008, Grade 1
• Country of Origin: United States

California Prop 65: No
