Schlage SCAN Scan II
Couldn't load pickup availability
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

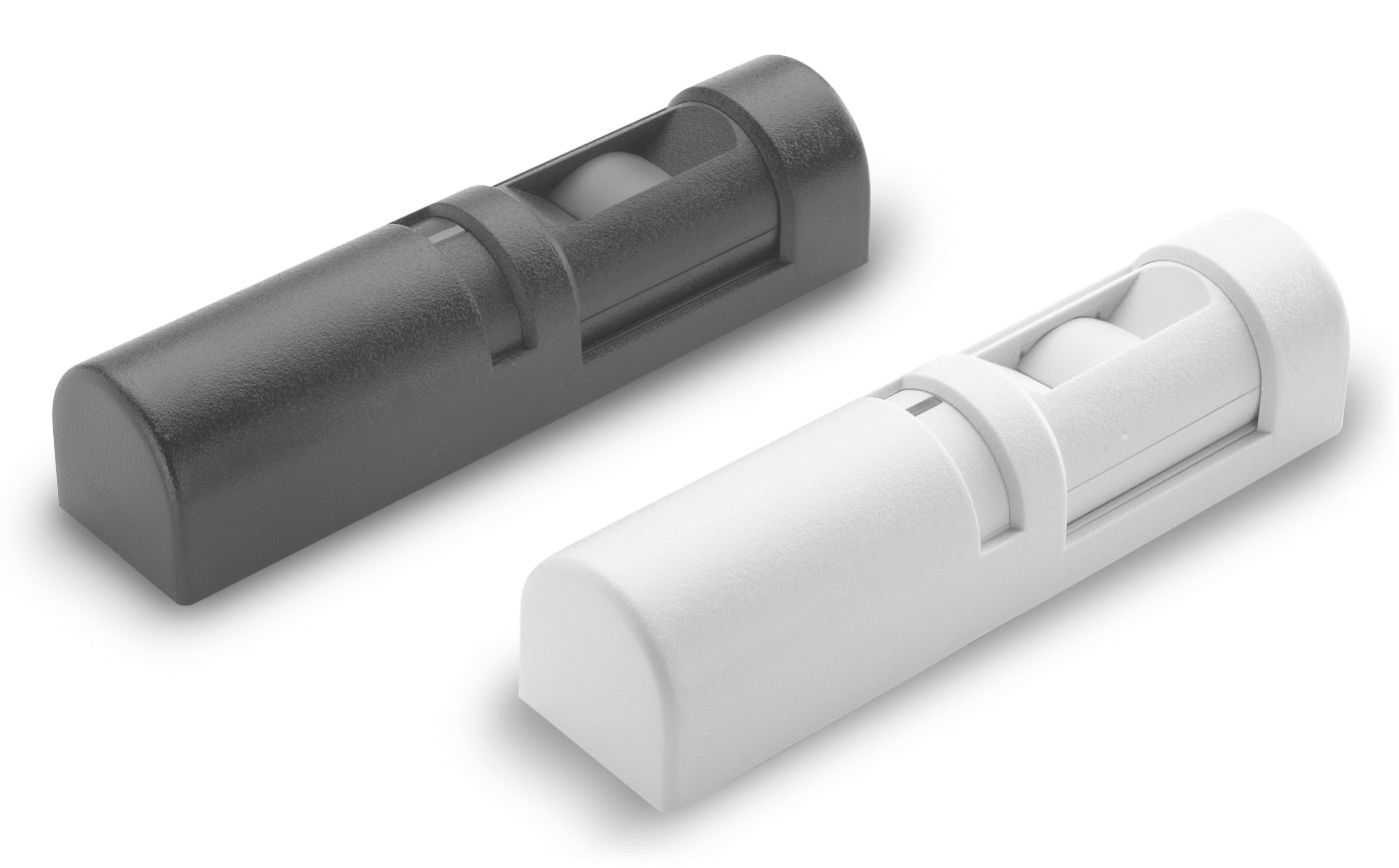

The Scan II is a compact, passive infrared detector specifically designed for “request-to-exit” applications. It features adjustable relay latch time, an externally visible activation LED, and two form “C” relays.The high-impact ABS plastic enclosure in black or white comes apart in 3 pieces for easy mounting and lock-in-place scanner angle adjustment. Internal angle setting marks aide optimal coverage configuration for both wall and ceiling mounting. Mounting height is 7 to 15 feet allowing coverage area of the Scan II sensor of up to 8 by 10 ft.
Features
- Passive Infrared Infrared Request to Exit Motion Sensor
- For use in "Request to Exit" applications
- 7' to 15' Mounting Height
- 8' to 10' Coverage
- Includes LED Indicator
- 6-1/4" x 1-1/2" x 1-1/2" Unit Dimension
- 12/24 VAC/DC Voltage
- 35mA @ 12 VDC, 38mA @ 24 VDC, 42mA @ 12 VAC, 48mA @ 24 VAC Current
- (2) Form C Contacts
Specifications
- Function: Infrared Request to Exit
- ANSI/BHMA Grade: Grade 1
- Finish: White
- Finish Description: White
- Door Handing: Non-handed
- Door Thickness Range: -
- Warranty: Limited Warranty
- Certifications: UL 294, ULC-S319, Class 1 Listed
- Country of Origin: Mexico
California Prop 65: No
