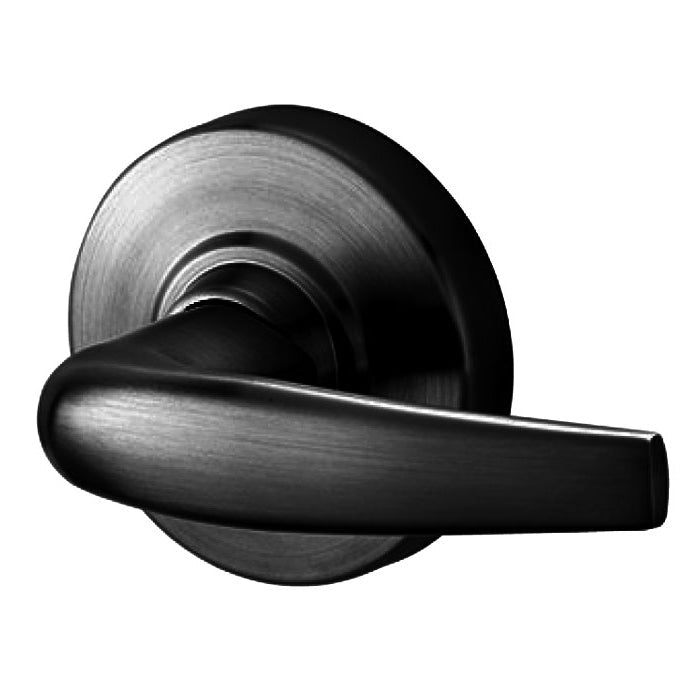

Schlage PC10 Series Grade 1 Passage Cylindrical Lock
The PC-Series is Schlage's heavy-duty Grade 1 cylindrical lever lock — built for the highest commercial cycle counts in schools, hospitals, government buildings, and high-traffic public facilities. ANSI/BHMA A156.2 Grade 1 certified for 800,000+ cycles with reinforced internal components and a hardened steel chassis.
Function: Passage. Door is always unlocked. Both levers always free. No keyed locking mechanism.
Specifications
-
Function: Passage (PC10)
-
Backset: 2-3/4" standard (2-3/8" available)
-
Door Thickness: 1-3/4" standard, up to 2-1/4" with extension
-
Strike: ANSI 4-7/8" curved lip strike included
-
Grade: ANSI/BHMA A156.2 Grade 1, Series 4000
-
Manufacturer: Schlage Lock Company (Allegion)
