Schlage ND96 — Grade 1 Vandlgard Storeroom, SFIC Housing (Less Core)

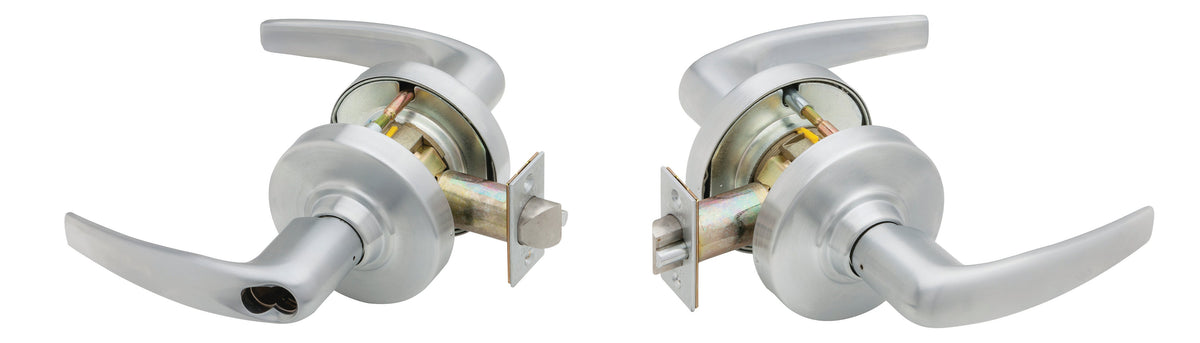

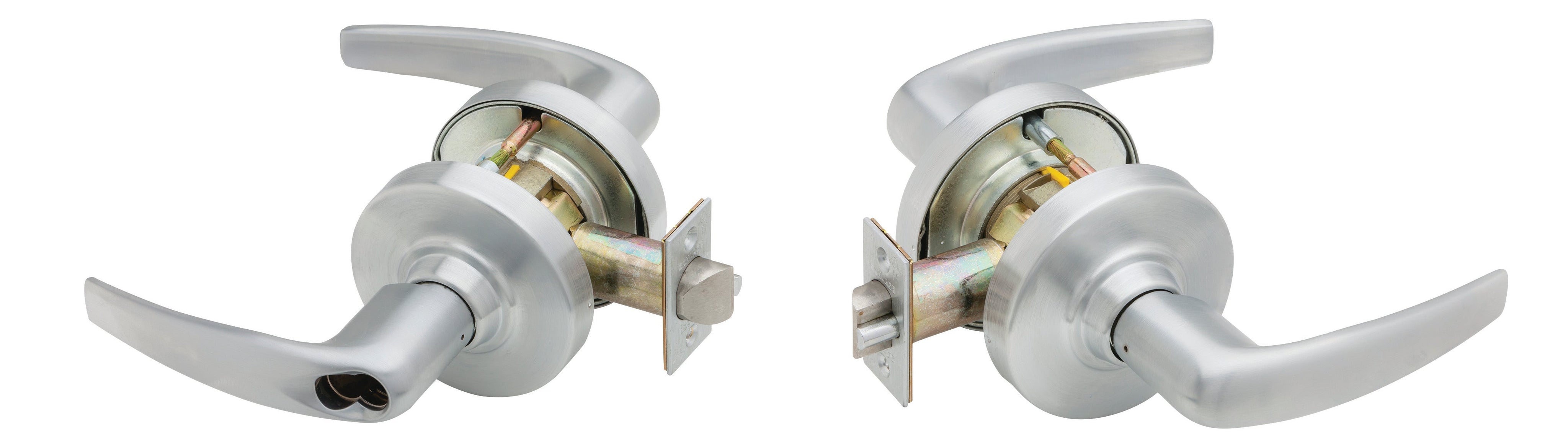

Schlage ND96 Series Grade 1 Vandlgard Storeroom Cylindrical Lock

The ND-Series is Schlage's premier Grade 1 commercial cylindrical lock — built for high-abuse interior and exterior openings in schools, hospitals, multifamily buildings, and commercial properties.

Function: Vandlgard Storeroom. Door always locked from outside; key retracts the latch. The outside lever rotates freely without releasing the latch — preventing forced entry attempts from damaging the lock. Inside lever always free for egress.

This configuration is the SFIC Housing (Less Core) variant with Standard mechanism.

Configuration: Schlage ND96 — Grade 1 Vandlgard Storeroom, SFIC Housing (Less Core)

Mechanical only — no electrical components.

Specifications

• Function: Vandlgard Storeroom
• Cylinder Type: SFIC Housing (Less Core)
• Electrification: Standard
• Keyway: C (Standard) — 6-pin conventional keyway. For Primus or other keyways, order the Less Cylinder variant + separate 20-XXX cylinder.
• Door Thickness: 1-5/8" (41 mm) to 2-1/8" (54 mm) standard — wider than most commercial cylindrical locks. Optional 1-3/8" (35 mm) to 6" (152 mm) for EE / EO / EI / ED configurations.
• Backset: 2-3/4" standard (2-3/8" available)
• Strike: Standard ANSI/BHMA curved-lip
• Grade: ANSI/BHMA A156.2 Grade 1
• Manufacturer: Schlage Lock Company (Allegion)

Schlage Document Library for installation instructions, templates, and catalogs.
