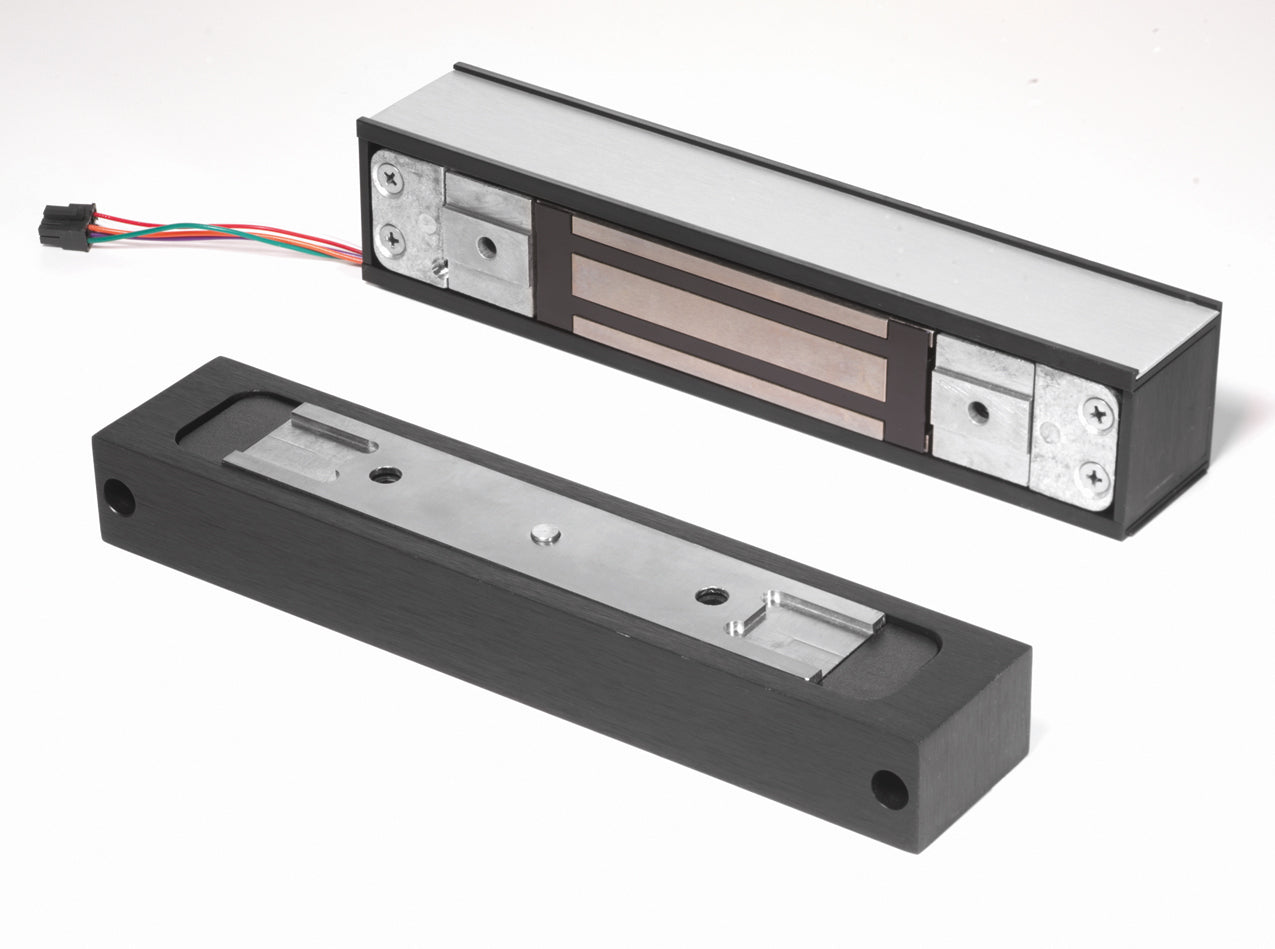

Schlage GF3000 Electromagnetic Shear Lock

GF3000 Series shear locks feature a patented design, offering advances over any shear lock in the market. A microprocessor-based control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources. These mortise shear locks offer the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking “tabs” on the magnet assembly with mating grooves in the armature plate. The GF3000 Series locks are ideally suited for commercial grade quality hollow metal doors and frames, as well as HERCULITE® brand glass doors with top rail. Advances in design provide low operating temperatures, making these shear lock suitable for use in the growing demand for concealed locks in wood frames.

Features

• Mortised Shear Lock Electromagnetic Lock
• 3000 lbs Holding Force
• 12/24 VDC Voltage
• 900/450mA @ 12/24 VDC Current
• Adjustable Time Delay
• Auto-Relock Switch
• 9-1/2" x 1-1/2" x 1-1/2" Unit Dimension
• Includes Machine Screws
• ANSI A156.23, Grade 1, UL Listed

Specifications

• Function: Mortised Shear Lock
• ANSI/BHMA Grade: Not Graded
• Finish: Stainless Steel
• Finish Description: Stainless Steel
• Door Handing: Non-handed
• Door Thickness Range: -
• Warranty: Limited Warranty
• Certifications: ANSI A156.23, Grade 1, UL Listed
• Country of Origin: Mexico

California Prop 65: No
