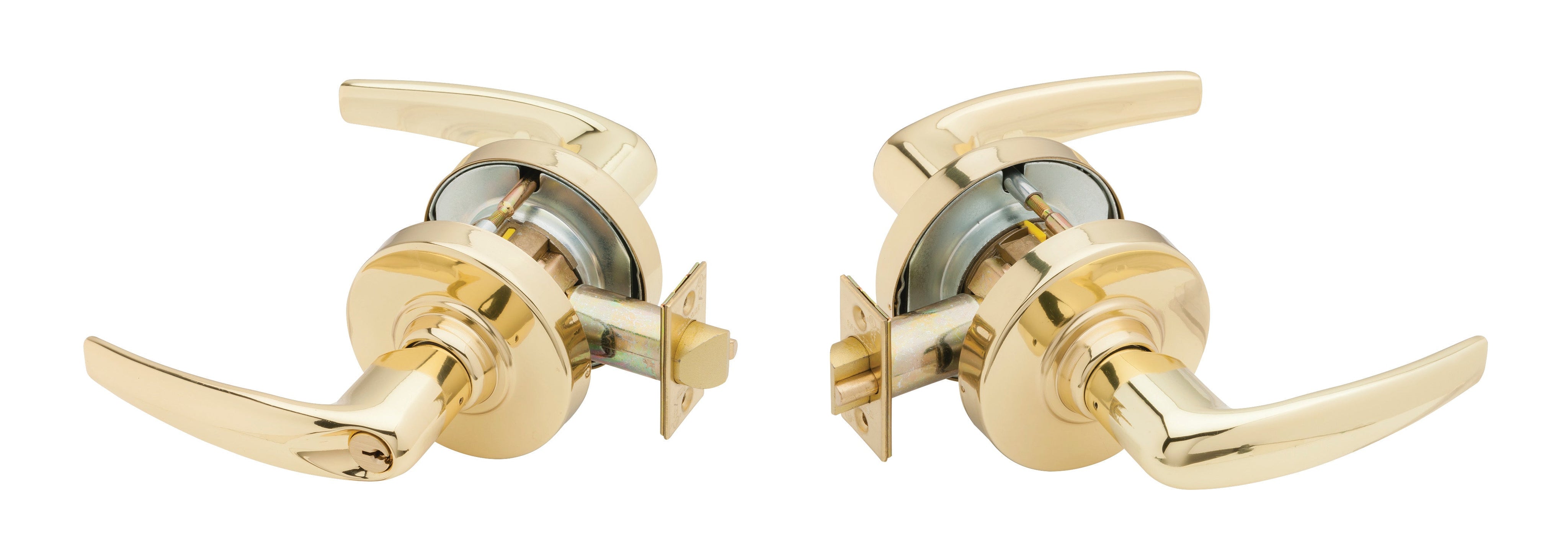

Schlage ALXV70 Series Grade 2 Vandlgard Classroom Cylindrical Lock
The ALX Series is Schlage's heavy-duty Grade 2 commercial cylindrical lock — a workhorse for medium-traffic commercial openings in offices, retail, multifamily, and light institutional applications. Modular chassis design allows field-replaceable function kits, chassis kits, and lever/finish combinations.
Function: Vandlgard Classroom. Vandlgard mechanism allows the lever to rotate freely without releasing the latch, dissipating force to prevent damage from forced-entry attempts. Outside lever is unlocked unless key locks/unlocks it. Inside lever always free for egress. Used in classrooms where the teacher can lock the door with a key for security drills or emergencies.
This configuration is the 6-Pin Conventional Cylinder variant.
Configuration: Schlage ALXV70 — Grade 2 Vandlgard Classroom, 6-Pin Conventional Cylinder
Specifications
-
Function: Vandlgard Classroom
-
Cylinder Type: 6-Pin Conventional Cylinder
-
Keyway: C (Standard) — 6-pin conventional keyway. For Primus or other keyways, order the Less Cylinder variant + separate 20-XXX cylinder.
-
Door Thickness: 1-3/8" to 1-7/8" standard
-
Backset: 2-3/4" standard (2-3/8" available)
-
Strike: Standard ANSI/BHMA curved-lip
-
Grade: ANSI/BHMA A156.2 Grade 2
-
Construction: Modular chassis (field-replaceable function kits)
-
Manufacturer: Schlage Lock Company (Allegion)
Schlage Document Library for installation instructions and catalogs.
