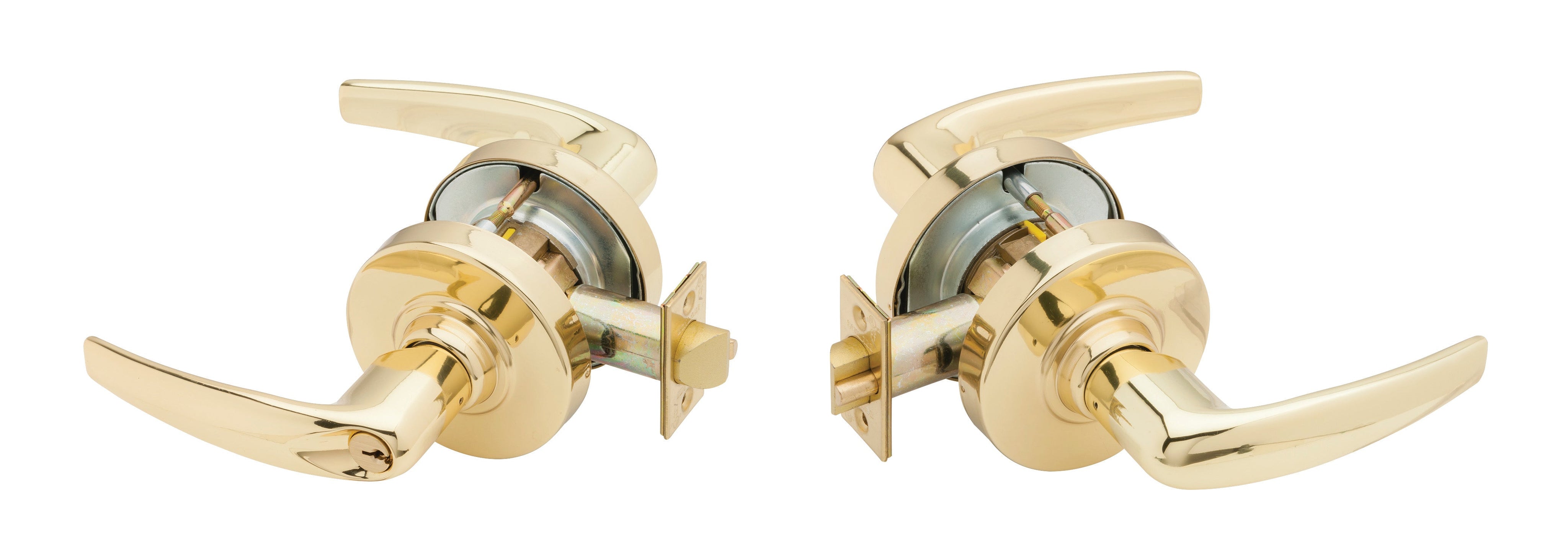

Schlage ALXV53 — Grade 2 Vandlgard Entry, 6-Pin Conventional Cylinder

Schlage ALXV53 Series Grade 2 Vandlgard Entry Cylindrical Lock

The ALX Series is Schlage's heavy-duty Grade 2 commercial cylindrical lock — a workhorse for medium-traffic commercial openings in offices, retail, multifamily, and light institutional applications. Modular chassis design allows field-replaceable function kits, chassis kits, and lever/finish combinations.

Function: Vandlgard Entry. Vandlgard mechanism allows the lever to rotate freely without releasing the latch, dissipating force to prevent damage from forced-entry attempts. Key locks/unlocks the outside lever. Inside lever always free for immediate egress. Distinct from Office in that there is no push-button on the inside; the lock state is controlled exclusively by key.

This configuration is the 6-Pin Conventional Cylinder variant.

Configuration: Schlage ALXV53 — Grade 2 Vandlgard Entry, 6-Pin Conventional Cylinder

Specifications

• Function: Vandlgard Entry
• Cylinder Type: 6-Pin Conventional Cylinder
• Keyway: C (Standard) — 6-pin conventional keyway. For Primus or other keyways, order the Less Cylinder variant + separate 20-XXX cylinder.
• Door Thickness: 1-3/8" to 1-7/8" standard
• Backset: 2-3/4" standard (2-3/8" available)
• Strike: Standard ANSI/BHMA curved-lip
• Grade: ANSI/BHMA A156.2 Grade 2
• Construction: Modular chassis (field-replaceable function kits)
• Manufacturer: Schlage Lock Company (Allegion)

Schlage Document Library for installation instructions and catalogs.
