Schlage ALX80 — Grade 2 Storeroom, Less Cylinder

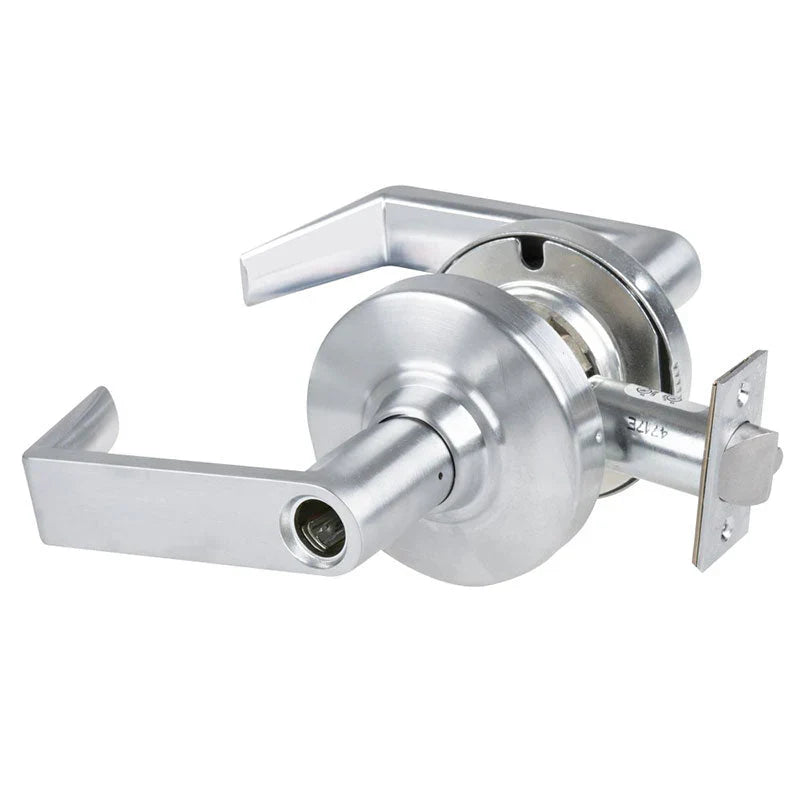

Schlage ALX80 Series Grade 2 Storeroom Cylindrical Lock

The ALX Series is Schlage's heavy-duty Grade 2 commercial cylindrical lock — a workhorse for medium-traffic commercial openings in offices, retail, multifamily, and light institutional applications. Modular chassis design allows field-replaceable function kits, chassis kits, and lever/finish combinations.

Function: Storeroom. Door always locked from outside; key retracts the latch. Inside lever always free for egress. Common in supply rooms, IT closets, and storerooms requiring positive locking.

This configuration is the Less Cylinder variant.

Configuration: Schlage ALX80 — Grade 2 Storeroom, Less Cylinder

Specifications

• Function: Storeroom
• Cylinder Type: Less Cylinder
• Keyway: C (Standard) — 6-pin conventional keyway. For Primus or other keyways, order the Less Cylinder variant + separate 20-XXX cylinder.
• Door Thickness: 1-3/8" to 1-7/8" standard
• Backset: 2-3/4" standard (2-3/8" available)
• Strike: Standard ANSI/BHMA curved-lip
• Grade: ANSI/BHMA A156.2 Grade 2
• Construction: Modular chassis (field-replaceable function kits)
• Manufacturer: Schlage Lock Company (Allegion)

Schlage Document Library for installation instructions and catalogs.
