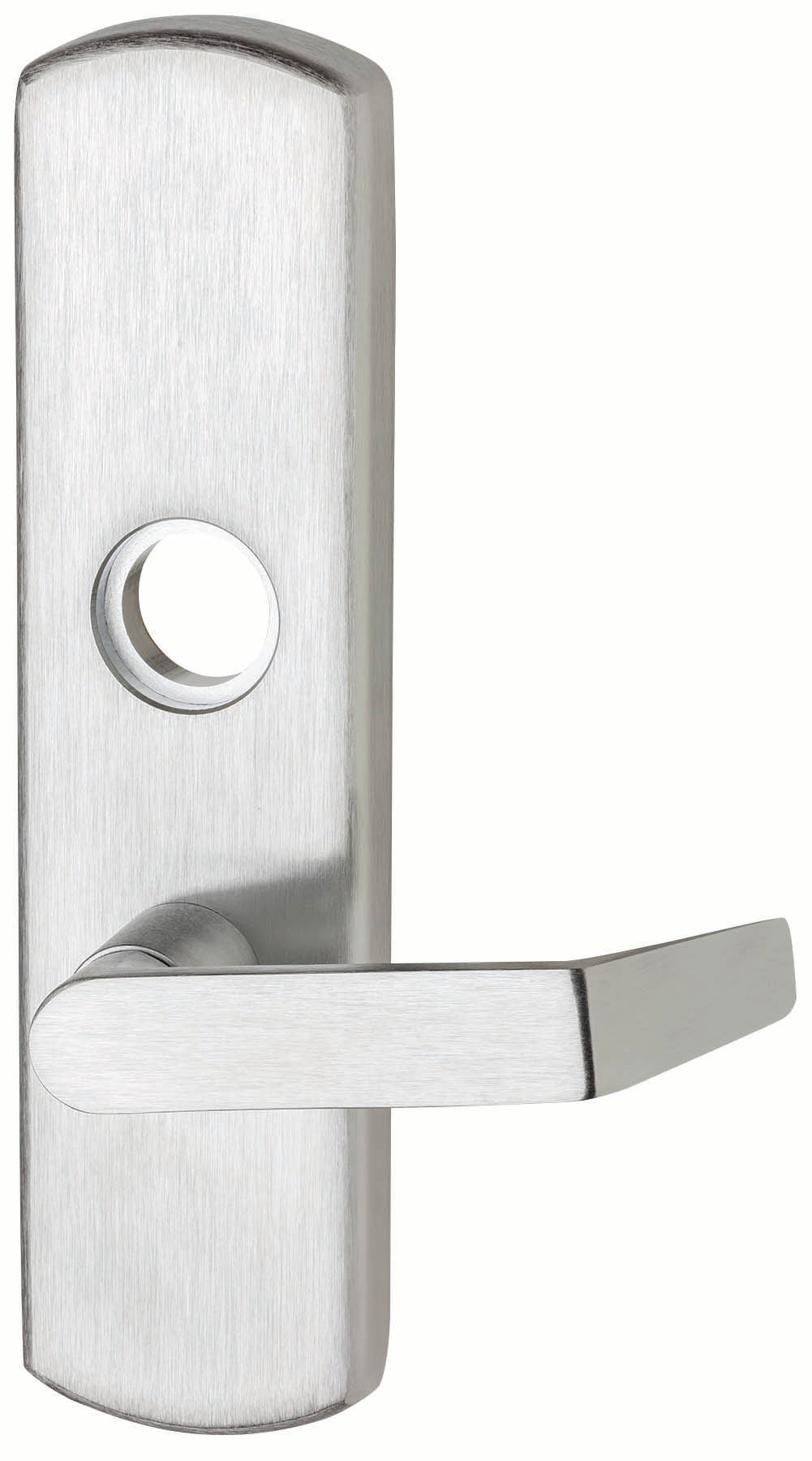

Von Duprin 996L-RV Active Classroom Lever Trim for 98/99 Rim and Vertical Rod exit devices
Von Duprin 996L-RV Active Classroom Lever Trim for 98/99 Rim and Vertical Rod exit devices

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Von Duprin

Von Duprin 996L-RV Active Lever Trim for 98/99 Rim and Vertical Rod

SKU: 996L-RV-626-03-LHR
(0)
$423.68
Out of stock
Finish
Lever Style
Handing
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

The Von Duprin 996L-RV is the active classroom-function lever trim for 98/99 Series Rim and Vertical Rod exit devices. Outside cylinder controls the lever — key locks/unlocks it. When unlocked, the lever retracts the latch for normal entry. When locked, the lever is rigid and exit-only operation is required from inside.

Compatible Exit Devices

Compatible with: Von Duprin 98 Series, 99 Series, 9827, 9847, 9849, 9927, 9947, 9949 Rim and Vertical Rod exit devices. For mortise (9875/9975), use 996L-M.

Function & Operation

Classroom function. Key in cylinder locks or unlocks the outside lever. Lever retracts latch when unlocked. Free egress from inside at all times via the touchbar.

Installation Notes

Mounts to door via included screws. Requires rim cylinder (sold separately) for keyed operation. Specify lever style (03, 06, 07, 17) and handing (LHR or RHR) at order.

Frequently Asked Questions

Do I need a separate cylinder?

Yes. The 996L-RV requires a rim cylinder, which is sold separately. Allegion or Schlage rim cylinders with the appropriate keying are typical.

What's the difference between 996L-RV and 996L-NL-RV?

996L-RV is classroom function (key locks/unlocks lever). 996L-NL-RV is nightlatch function (key only momentarily retracts the latch; lever is always rigid).

What lever styles are available?

03 (Galaxy lever), 06 (standard lever), 07 (rhodes), and 17 (Vandlgard) — all in stocked finishes.

What's the difference between this and the Mortise version?

The Rim/Vertical Rod version (996L-RV) attaches to 98/99 Rim and Vertical Rod devices. The Mortise version (996L-M) is for 9875/9975 mortise exit devices. Use the Lock Type selector above to switch.

Made in USA by Allegion. Backed by Allegion limited warranty.
