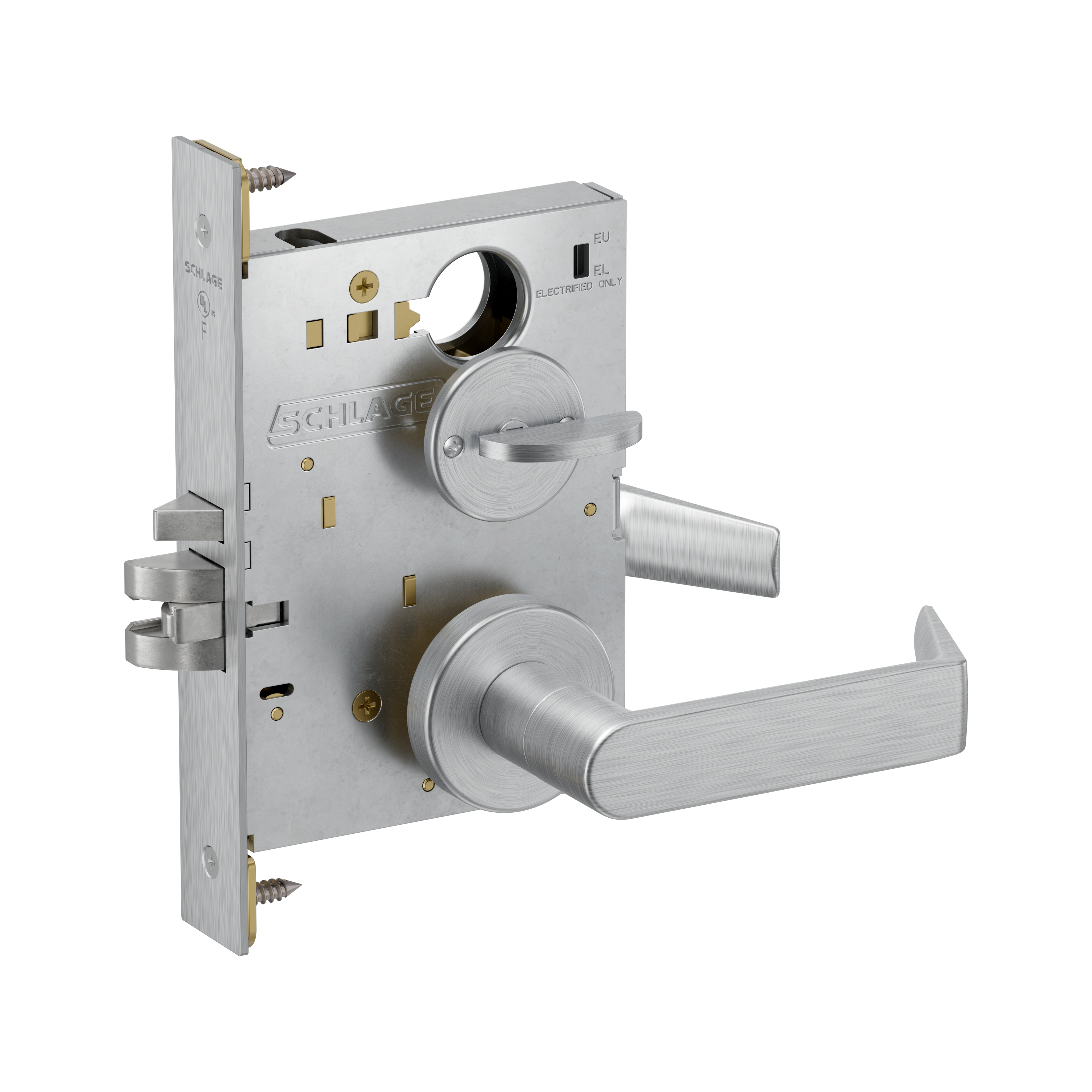

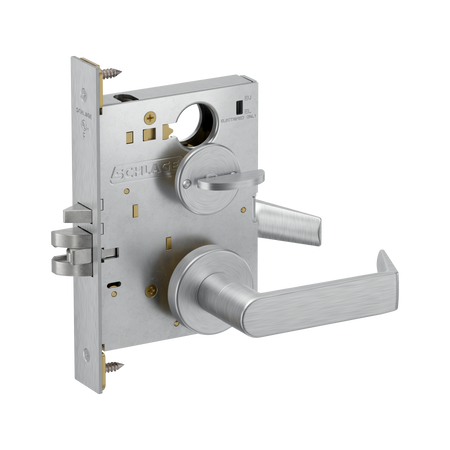

Schlage L9050 — Grade 1 Office Mortise Lock

Schlage L9050 Series — Grade 1 Office Mortise Lock

The L9000 Series is Schlage's flagship Grade 1 mortise lockset — the heavy-duty standard for institutional, healthcare, and education facilities requiring the highest level of security and durability. Cast brass case, hardened steel bolts, and field-selectable handing make the L9000 the most specified mortise lock in North America.

Function: Office. Key locks/unlocks outside lever; inside lever always free; inside thumbturn locks outside lever.

Cylinder configuration: Available with FSIC housing (J), SFIC housing (B), conventional 6-pin (P), or Less Cylinder (L). Cylinder ships separately for housing-only configurations.

Specifications

• Function: Office (L9050)
• Case: Heavy-duty cast brass, hand-reversible
• Lever Design: Tubular (03), Rhodes (06), or Sparta (17)
• Trim: Round Rose A (2-1/8"), Round Rose B (2-9/16"), or Escutcheon (L/N)
• Door Thickness: 1-3/4" standard, 2-1/4" with extension
• Strike: ANSI 4-7/8" curved-lip strike included
• Grade: ANSI/BHMA A156.13 Grade 1, Series 1000 (1 million cycles)
• Manufacturer: Schlage Lock Company (Allegion)

Resources & Documentation

• L Series Product Page
• L Series Catalog (PDF)
